Beschrijving

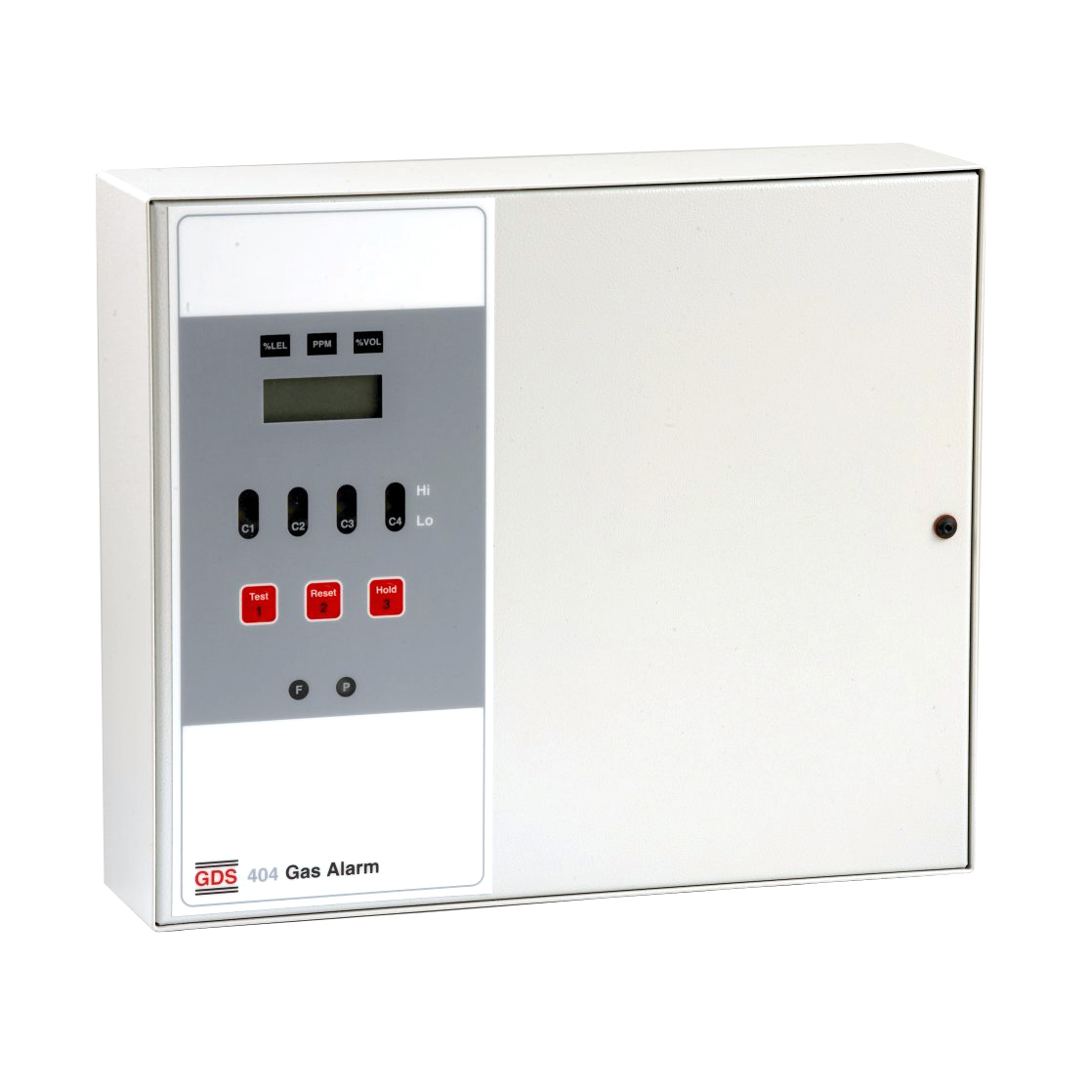

De GDS 404 is ontworpen met kenmerken die een effectieve reactie op de detectie van gevaarlijke gassen in een breed scala van omgevingen van kantoorpanden tot zware industriële toepassingen waarbij gevaarlijke stoffen aanwezig zijn.
Typische plaatsen voor de monitor zijn openbare gebouwen, boilers, zwembaden, waterzuiveringsinstallaties, H & V controlesystemen en bij de productie en verwerking van planten.
Technische specificaties GDS 404
| Sensor points | 1 ~ 4 |
| Measurements | • Combustible Gas – L.E.L., % vol, ppm • Toxic Gas – ppm, % vol • Oxygen – % vol Depletion/Enrichment • Any 4~20mA input signal |
| Power Supply | 230/115v AC or 24v DC and specials |
| Power Consumption | 12 watts – full alarm |
| Indicators | • Power – Green L.E.D • Mains Fail – power indicator change green to amber • Alarms – Red L.E.D.s • Fault – Amber L.E.D • Digital Display – 31/2 Digit – gas readout • Sensor channel selection indicator – Amber L.E.D • System test – Alarm L.E.D.s flashing • Alarm Relay Inhibit – Fault L.E.D on |
| Outputs | • High Alarm Relay – Common D.P.C.O Normally energised or de-energised, latched or unlatched • Low Alarm Relay – Common D.P.C.O Normally energised or de-energised, latched or unlatched TECHNOLOGIES LTD 1-4 Channel Gas Alarm • Fault Alarm Relay – Common S.P.C.O Normally energised or de-energised • Channel Relays – 1 per channel high or low selectable S.P.C.O Normally energised or de-energised, latched or unlatched • General Alarm Relay – resetable S.P.C.O • All contacts rated 5A-230vAC • Analogue 4 ~ 20mA output per channel • Output 24vDC @ 100mA max – auxiliary equipment (non inductive) |
| Audible Alarm | Permanent mute option. Lo, Hi, Fault alarms |
| Alarm Settings | • Digital Setting (fully adjustable between zero and fullscale) • Delay to alarm T1 – 10 seconds, T2 – 30 seconds, T1 + T2 – 10 minutes |
| Sensor inputs | • Bridge type 3 wire mV input • 4~20mA (electrochemical/infrared) |
| Sensor cable | 3 core 1.5mm2 screened < 1.5km |
| Miscellaneous | • EMC approvals EN50270 Marine EN60945 • Enclosure – cable entry – bottom/rear • Operating temperature -10 to +50˚C • Relative Humidity 0 – 90% • Protection IP52 – option IP65 • Dimensions 310W x 265H x 75Dmm • Weight 3.6kg • Optional backup battery • Field terminals – 2.5mm quick release • System/lamp test • Remote Accept/Reset • Alarm isolate during service – inhibit |
GDS 404 Datasheet (EN)
