Beschrijving

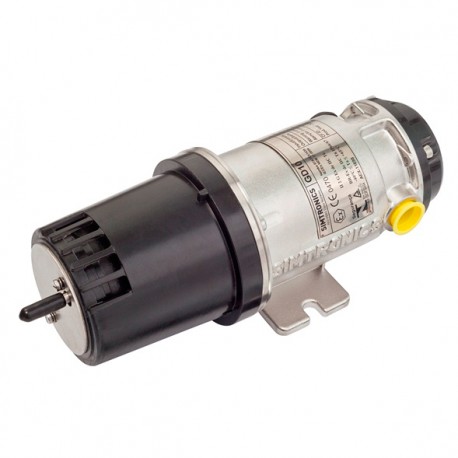

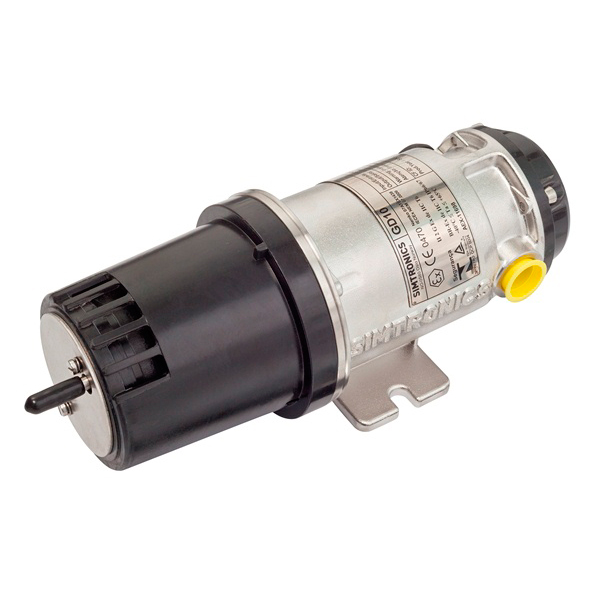

The Simtronics GD10P detector is the benchmark for combustible gas detection on offshore installations. It has set the standard for gas detectors in the areas of safety, stability and low maintenance. GD10P comes with 5 years warranty.
- Life-safety performance approved; ATEX EN60079-29-1 & CSA 22.2 No. 152
- 15 years warranty IR sources – solid state optics
- Selectable response rate, without predictive software
- Individually heated sapphire mirror (not conducted heat)
- No field recalibration
- Dual skin weather protector – no filters / gauzes or sinters
- Planned maintenance with HART
Technische specificaties Simrad GD10P CH4
| uitvoering | Vast opstelbare gasdetector |
| Gassoorten | CH4 |
|---|---|
| Gewicht | 2,9 kg |
| Afmetingen (HxBxD) | 264 x 104 x 106 mm |
| Meetbereik | 0 – 100 %LEL CH4 |
| sensorhuis | Roestvrij staal |
| certificeringATEX CSA IECEx INMETRO ABS SIL MED |
07ATEX1438 1773527 (100% LEL Methane) NEM 07.006 AEX-11698 # 04-LD444057-PDA Qualified for SIL2 systems B-5901 |
Dit product heeft het ‘Nemco Certificaat’
GD10P CH4 Datasheet (EN)
